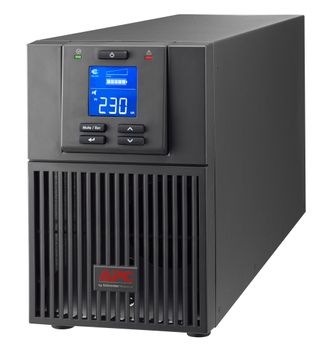

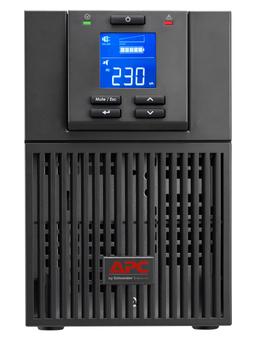

APC C Easy UPS SRV SRVPM1KIL - UPS - AC 220/230/240 V - 800 Watt - 1000 VA - no battery - USB, RS-232 - output connectors: 3 - PFC
Frontpage
Computers
UPS
APC C Easy UPS SRV SRVPM1KIL - UPS - AC 220/230/240 V - 800 Watt - 1000 VA - no battery - USB, RS-232 - output connectors: 3 - PFC
|
|
APC C Easy UPS SRV SRVPM1KIL - UPS - AC 220/230/240 V - 800 Watt - 1000 VA - no battery - USB, RS-232 - output connectors: 3 - PFC
LEASING
( ex. sales tax)
Setup fee 0,-, invoice charge 0,-/month, minimum order 0,-. Freight and salestax (if applicable) are additional. On approved credit. Lease is selected as a payment option in the checkout.
|
Description
Specifications
This APC Single phase Easy UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 1000VA double-conversion on-line tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. The SRV comes with IEC 320 C14 input and 3x IEC 320 C13 outlets. The On-Line UPS has a intelligent card slot for optional Network Management Card (AP9544, SRVSMB001, VGLS9901I) that enables network-based UPS monitoring and management. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The Built-in automatic and manual bypass provide seamless power to the load even in the event of an internal detected fault or error in UPS. The Easy UPS has a 2-year warranty. Ideal for small data centers, manufacturing facilities, computer rooms, network storage devices, telecommunication, and healthcare IT.
| UPS topology | Double-conversion (Online) |
| Output power capacity | 1 kVA |
| Output power | 800 W |
| Waveform | Sine |
| Input operation voltage (min) | 160 V |
| Input operation voltage (max) | 280 V |
| Input frequency | 40/70 Hz |
| Output operation voltage (min) | 220 V |
| Output operation voltage (max) | 240 V |
| Surge energy rating | 600 J |
| Crest factor | 3:1 |
| ECO mode | Yes |
| Output voltage Total Harmonic Distortion (THD) | 3% |
| Audible alarm(s) | Yes |
| Audible alarm modes | Alarm when on battery, Low battery alarm, Overload alarm |
| Auto-restart | Yes |
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 3 AC outlet(s) |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Serial interface | Yes |
| Serial interface type | RS-232 |
| Serial ports quantity | 1 |
| SmartSlot | Yes |
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery recharge time | 4 h |
| Automatic battery test | Yes |
| Form factor | Tower |
| Product colour | Black |
| Display type | LCD |
| LED indicators | Yes |
| Certification | CE, IEC 62040-1-1, IEC 62040-1-2
REACH |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage relative humidity (H-H) | 0 - 95% |
| Operating altitude | 0 - 3000 m |
| Non-operating altitude | 0 - 14763.6 m |
| Compliance certificates | RoHS |
| Width | 145 mm |
| Depth | 288 mm |
| Height | 223 mm |
| Weight | 9.3 kg |
| Battery width | 23.5 cm |
| Battery depth | 36.5 cm |
| Battery height | 33 cm |
| Battery weight | 10.6 kg |
| Cables included | USB cable |
| Manual | Yes |
| Harmonized System (HS) code | 85078000 |
| Nominal output voltage | 230 V |
| Nominal input voltage | 230 V |
