WESTERN DIGITAL SE4U60-60 600TB HWS ARS HCTARSSE4U60 INT

Frontpage Storage External Drives & Enclosures WESTERN DIGITAL SE4U60-60 600TB HWS ARS HCTARSSE4U60 INT
WESTERN DIGITAL SE4U60-60 600TB HWS ARS HCTARSSE4U60 INT (HS00631)

WESTERN DIGITAL SE4U60-60 600TB HWS ARS HCTARSSE4U60 INT

SKU:
HS00631
  • Disk Interface SAS, SATA
  • Installed 600TB
  • Max Disks 60
  • RAID Yes
  • Type Rack (4U)
  • Disk Size 3.5"
2 832,-
3 540,- incl. sales tax
Expected in stock 25.06.2024
LEASING ( ex. sales tax)
6-months
142,-/month
12-months
284,-/month
Setup fee 0,-, invoice charge 0,-/month, minimum order 0,-. Freight and salestax (if applicable) are additional. On approved credit. Lease is selected as a payment option in the checkout.
Description

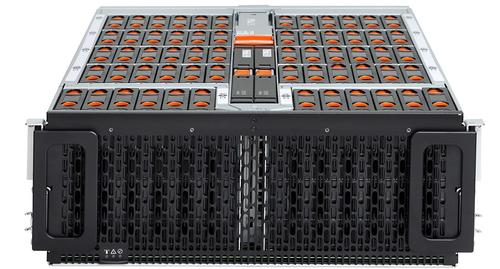

Ultrastar Data60 Hybrid Storage Platform


The 60-Bay Next-Generation Hybrid Platform for Software-Defined Storage

The Ultrastar Data60 hybrid storage platform is a key element of next-generation disaggregated storage and Software-Defined Storage (SDS) systems. The compact, efficient form factor provides the flexibility to specify the HDD and SSD combinations for balancing capacity, performance, and cost.

A flash data acceleration tier can be enabled to serve both fast data and big data applications from a single platform. The Ultrastar Data60 addresses the demanding storage needs of large enterprise customers, storage OEMs, cloud service providers, as well as resellers/integrators requiring dense, shared HDD or hybrid storage.


Features:

  • Up to 60 Ultrastar DC HC520 HDDs (SAS or SATA)
  • Up to 720TB raw capacity in 4U
  • Hybrid support for data acceleration tier with SSDs (SAS or SATA) in up to 24 of 60 drive slots
  • Dual-port SAS for high availability or single-port SATA for low cost
  • Enterprise-grade redundant and hot-swappable PSUs, I/O modules, and fans
  • 5-year limited warranty


Specifications:

Max. Drives
  • 60 x 3.5” drive bays
  • Up to 24 can be SAS or SATA SSD
Drive Interface
  • 12 Gb/s SAS
  • 6 Gb/s SATA
Available Drive Capacities
  • HDD up to 12TB
  • SSD up to 6.4TB
Host Interface
  • Dual redundant I/O Modules (IOM)
  • 6 Mini-SAS HD ports per IOM
Management
  • SCSI Enclosure Services
  • Redfish (out of band, via RJ45)
Physical Dimensions
  • Height: 175mm (6.89”)
  • Width: 447mm (17.61”)
  • Depth: 712mm (28.03”)
  • Depth in Rack: Max of 890mm (35.04”) w/ dual CMA—includes 2 SAS cables
Weight
  • Product without drives: 27.3kg (60lbs)
  • Product with 60 HDDs: 79.4kg (175lbs)
Power
  • Dual 1600W, 80+ Platinum
  • 200-240V AC input, auto ranging, 50-60Hz
Cooling
  • 4 main enclosure fans, front-to-rear system cooling with zero-loss backflow prevention
  • 1 I/O module fan
  • Dual PSUs with built-in fans
LED Indicators
  • Front/Rear: Power, ID, Fault
  • Drive: Activity, Fault
Serviceability
  • Cable-free hot-swappable IOM, power supply, fans, and drives
Environmental
  • Operating Temperature: 5 to 40°C
  • Non-op Temperature: -40 to 60°C
  • Humidity: 5 to 85% relative humidity
  • Operating Altitude: 40°C @ 3,000ft
  • Sound Power: < 7.2Bels @ 23±2°C
